[RV LABS] Locking Drawer Latch - Brushed Stainless [42 or 100mm]

Name: [RV LABS] Locking Drawer Latch - Brushed Stainless [42 or 100mm]
Brand: RV Labs
SKU: D42SS
Price: 17.75 USD
Availability: InStock
Rating: 4.72 (18 reviews)

by RV Labs

$17.75 - $18.75

$17.75

Size

Quantity

More payment options

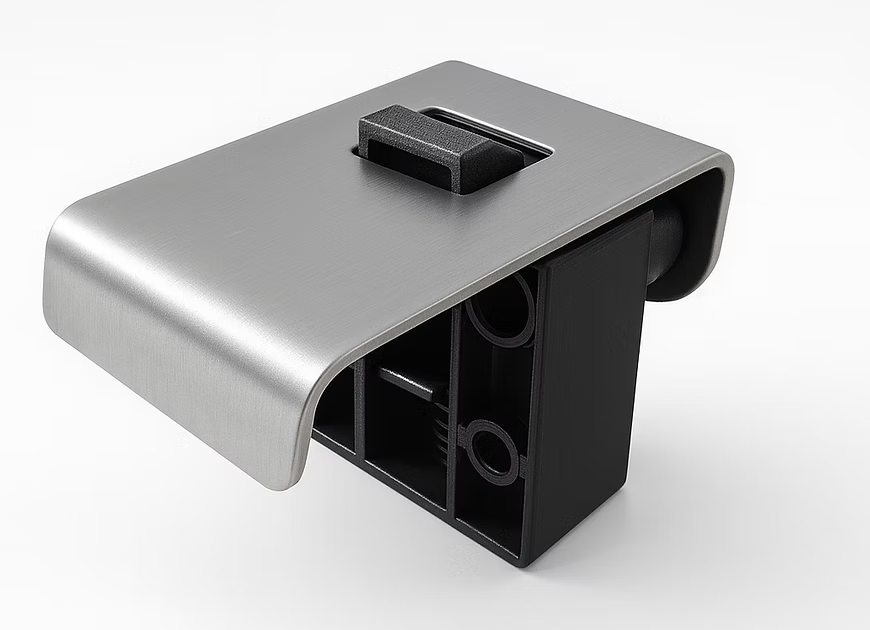

Secure your belongings while enhancing the style of your mobile living space with the RV Labs Locking Drawer Latch. This sophisticated and robust latch is an indispensable addition to any RV, camper, or van, promising both security and ease of use.

Crafted with precision by RV Labs in Australia, this latch embodies a blend of elegance and functionality. Its clever design integrates a door handle and a locking mechanism in one, offering a smooth, finger-pull action to unlock. This innovative solution ensures your drawers and cabinet doors stay firmly closed as you traverse bumpy roads, providing peace of mind that your items are safe and sound.

Suitable for furniture fronts with a thickness of up to 20 mm.

Available in various finishes and sizes, allowing you to choose the perfect match for your interior aesthetic.

Specifications
Box Content
Installation / Manuals

- Dimensions 42mm : 71mm x 42mm x 43mm / 2.79" x 1.65" x 1.69" (L x l x H)

  Dimensions 100mm : 71mm x 100mm x 43mm / 2.79" x 3.94" x 1.69" (L x l x H)
- Weight : 42mm - 75g / 100mm - 100g
- Material : Stainless Steel / Powder Coated / Plastic
- Screws Not Included: The package does not include screws for installation, as the appropriate screws depend on the depth of the material the door or drawer is made from.
- Screw Recommendation: We recommend using #8 screws at the appropriate length for securing the latch. The longer the screw (the thicker the door/drawer front
1. Screws Not Included: The package does not include screws for installation, as the appropriate screws depend on the depth of the material the door or drawer is made from.
2. Screw Recommendation: We recommend using #8 screws at the appropriate length for securing the latch. The longer the screw (the thicker the door/drawer front), the stronger the latch will be.
3. Lubrication: After installation, we recommend applying a quick spray of WD-40 or silicone lubricant into the top of the latch mechanism for smooth operation. If there is any friction when using the latch, adding additional lubricant will typically resolve this issue.
4. Opening the Latch: When opening the latch, we recommend using your knuckles as a lever against the door/drawer frame to make the pulling motion easier.
5. Adjusting Attachment Screws: If the latch isn’t releasing freely/easily, it may be because the attachment screws are too tight. Try backing these screws out slightly (1/4 turn at a time).
6. Latch and Catch: Each door or drawer should have its own latch, and each latch needs its own catch/striker plate (included). For drawers, we recommend a rail for each drawer where the catch can be installed.
7. Drilling for Catches: A 1-3/16″ Forstner bit is recommended for drilling out the openings for the catches. There is a hole in the center of the catch that you can use to mark the location of the center of your drill bit.

RV Labs Drawer Pull - Technical Plan (EN)

Unfortunately the pulls will not work on my cabinets. I didn’t realize that the pulls are flush mount and my drawers are not. Otherwise they seemed well made.

Thanks for your feedback! Sorry to hear the pulls didn’t work out for your cabinets. We appreciate you giving them a try, and hope you found the right solution for your drawers!

Great latches!

I used these and the larger 100mm latches in my camper conversion for kitchen cabinets and drawers and am very pleased with them. A couple of them needed a bit of dry lubricant to help them slide back and forth easier, but otherwise these have worked great for me.

Great latches!

I used these and the larger 100mm latches in my camper conversion for kitchen cabinets and drawers and am very pleased with them. A couple of them needed a bit of dry lubricant to help them slide back and forth easier, but otherwise these have worked great for me.

Okay latches overall, but some issues

My partner and I have these latches installed in our Landcruiser kitchenette build. Overall we like them. They look nice and they mostly holding our drawers shut. However, we have several latches that don't function properly all the time. The plastic pop-up piece that holds the drawers shut gets stuck and won't move up and down easily which results in our drawers occasionally flying open while driving. Also, the metal pulls themselves are quite loose and can easily wiggle up and down which makes the pulls confusing and feel like a cheap product. Overall they don't seem worth the high price. We paid over $100 for our latches and probably could have found something better for less. Aesthetics: 10/10, Functionality: 5/10

I just wanted to follow up with you on your review of the RV Labs latches. We've found that a silicon spray will help with the latches sticking, this helps to lubricate the plastic. Also, check that the little screws on the back of the latch are nice and tight.
Regards,
Katie T.
Operations Manager

Okay latches overall, but some issues

My partner and I have these latches installed in our Landcruiser kitchenette build. Overall we like them. They look nice and they mostly holding our drawers shut. However, we have several latches that don't function properly all the time. The plastic pop-up piece that holds the drawers shut gets stuck and won't move up and down easily which results in our drawers occasionally flying open while driving. Also, the metal pulls themselves are quite loose and can easily wiggle up and down which makes the pulls confusing and feel like a cheap product. Overall they don't seem worth the high price. We paid over $100 for our latches and probably could have found something better for less. Aesthetics: 10/10, Functionality: 5/10

I just wanted to follow up with you on your review of the RV Labs latches. We've found that a silicon spray will help with the latches sticking, this helps to lubricate the plastic. Also, check that the little screws on the back of the latch are nice and tight.
Regards,
Katie T.
Operations Manager
