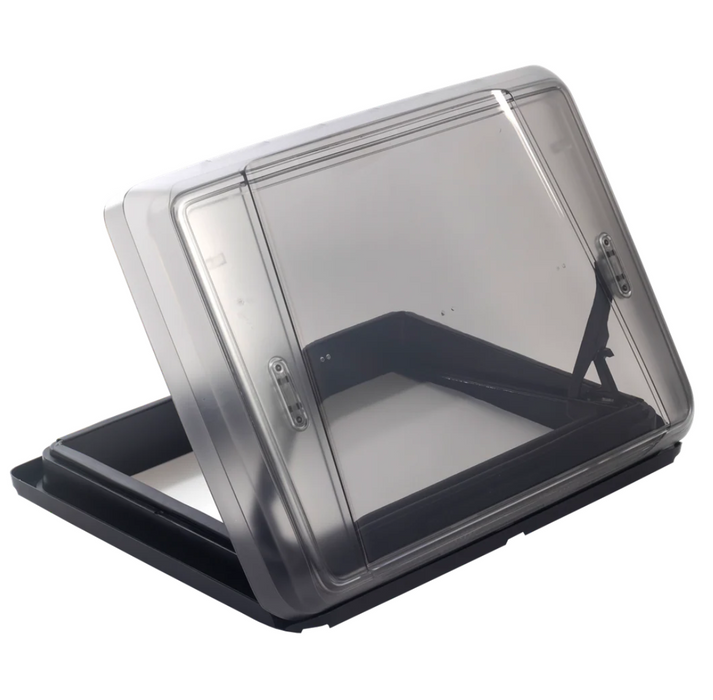

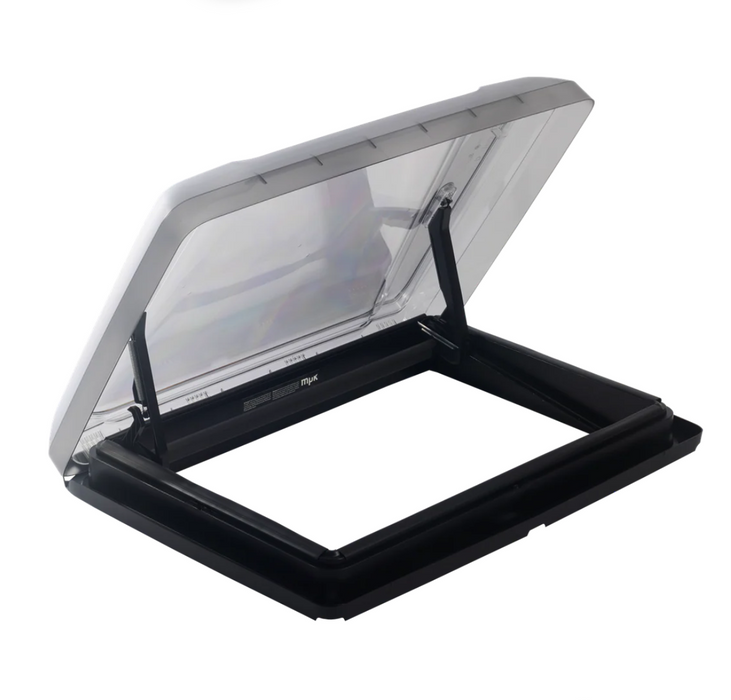

MPK VisionStar L Black Roof Hatch
With the MPK VisionStar L in Black, you get a flat, robust and easy-to-operate roof hood for caravans, motor homes and other vehicles. It is infinitely adjustable up to 55°, particularly noise-reducing and impresses with its high-quality design. The smoked glass roof hood with double glazing and double pleated blind ensures bright, warm lighting conditions and even distribution through the diffusing glass pane. Double-walled components and tinted material offer the best insulation and high UV protection.
The VisionStar L roof vent for the cutout dimensions 700 x 500 mm is also available with dimmable, energy-saving LED's in the inner frame. (Optional Upgrade)
Details:
- Suitable for caravans, motor homes and touring vehicles
- Suitable for roof thicknesses from 25-60 mm
- Smoked glass roof hood with double glazing
- Without permanent ventilation

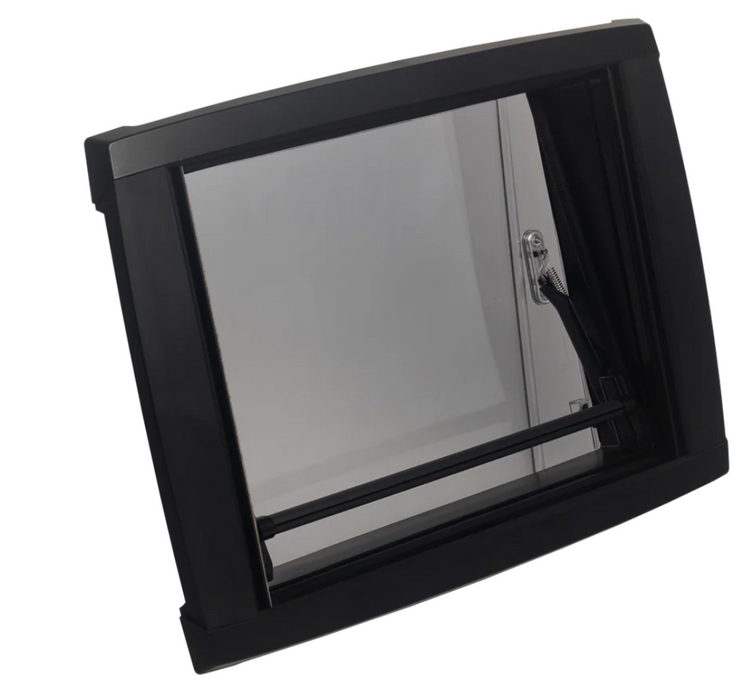

- Inner frame with double pleated blind
- Diffusing glass pane for uniform light distribution
- Only 105 mm flat above the roof
- Minimal driving noise and draughts
- Double-walled canopy and frame made of poly carbonate for optimum insulation
- High UV protection thanks to tinted material
- Convenient one-handed operation
- Infinitely adjustable up to 55
Technical data:
- Cut-out dimensions: 700 x 500 mm (27.56 x 19.69 in)
- Corner radius: 23 mm (0.91 in)
- Hood dimensions: 815 x 583 mm (32.09 x 22.95 in)
- Height above roof: 105 mm (4.13 in)
- Frame dimensions: 872 x 610 x 37 mm (34.33 x 24.02 x 1.46 in)
- LED version: 872 x 650 x 37 mm (34.33 x 25.59 x 1.46 in)
- Recommended maximum speed for transverse installation: 160 km/h (99 mph)
- Recommended maximum speed for longitudinal installation: 130 km/h (81 mph)
-
Template for cut out: Included
Upgrade your order by adding the LED option for your roof hatch!
LED light source data (only for LED version):
- Light color ~ 3000K
- Energy efficiency class F
- Nom. Useful luminous flux 2 x 500 lm
- Mains voltage 12 - 14V DC
- Consumption 2 x 5.6 kW/h / 1000h
- Nominal service life 10,000 h
- Number of switching cycles 50,000
- Start-up time until 60% of full brightness is reached < 1 sec.
- Nomin. Half-value angle (not suitable for accent lighting) 60°
Scope of delivery:
- 1x roof canopy with top frame and pleated frame
- 1x fastening parts set (14 side clips, 4 plastic screws)
- Please note: To help us conserve resources, we supply our roof vents without screws – the correct length depends on your roof thickness. This way, we avoid waste and you can choose the right screws. You'll find helpful tips in our installation instructions.
- Full line of replacement parts are available through Expedition Upfitter
For assembly you will also need (not included):
- Permanently elastic sealant, e.g. Korapop 225
-
8 x 3.5 mm pan head sheet metal screws (DIN ISO 7049). The screw length depends on the roof thickness. (3.5 mm diameter ≈ 0.14 in ≈ #6 screw size equivalent)
Roof thickness and required screw length
Roof thickness Screw length 25–38 mm (0.98–1.50 in) 25 mm (0.98 in) 38–51 mm (1.50–2.01 in) 38 mm (1.50 in) 50–60 mm (1.97–2.36 in) 50 mm (1.97 in)
