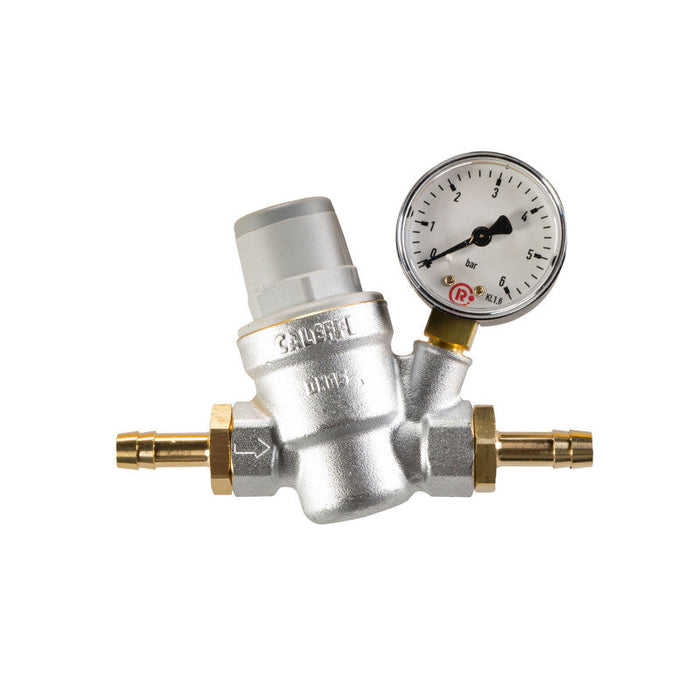

Adjustable Pressure Reducer with Gauge | 1–5.5 Bar Range + 2x Hose Nozzles (10mm)

Protect your water system from overpressure.
This adjustable pressure reducer with a built-in pressure gauge is a must-have for any pressurized water system in motorhomes, boats, or tiny homes. It ensures that sensitive components like boilers, filters, and plastic fittings stay protected—no matter how powerful your pump is.

With an inlet pressure rating of up to 16 bar and a fully adjustable outlet range from 1 to 5.5 bar, this regulator provides smooth, quiet, and safe operation for your entire water system.

Key Features:

• Wide Adjustment Range: Output pressure adjustable from 1 to 5.5 bar (factory-set to 3 bar)

• Integrated Pressure Gauge: Clearly displays output pressure (scale: 0–10 bar)

• High Inlet Pressure Compatibility: Withstands inlet pressure up to 16 bar

• Dual Connection Options: Includes both 1/2" and 1" IG (ISO 228-1) threads and 2x hose nozzles (10 mm)

• Non-Stick Internal Coating: Prevents limescale buildup and sticking

• Precision Diaphragm Design: For stable, wear-resistant pressure control

• Quiet Operation: Large outlet chamber reduces noise—perfect for small living spaces

• Easy Maintenance: Removable cartridge and dirt trap for extended life

Specifications:

• Inlet Pressure (max): 16 bar

• Outlet Pressure (adjustable): 1 – 5.5 bar

• Factory Setting: 3 bar

• Temperature Limit: Max 40 °C

• Gauge Scale: 0 – 10 bar

• Operating Medium: Water

• Threaded Connections: 1/2" and 1" IG (ISO 228-1)

Includes:

• 1x Adjustable pressure reducer

• 2x Hose nozzles (10 mm)

• 1x Pressure gauge

Installation Note:
This unit must be installed and adjusted by a qualified professional. Pressure settings should match your system’s specific boiler or component limitations. For example, if your boiler must not exceed 3 bar, the output setting must be adjusted accordingly.
