Low-Profile Panoramic Skylight • Double-Glazed • Optional LED Upgrade

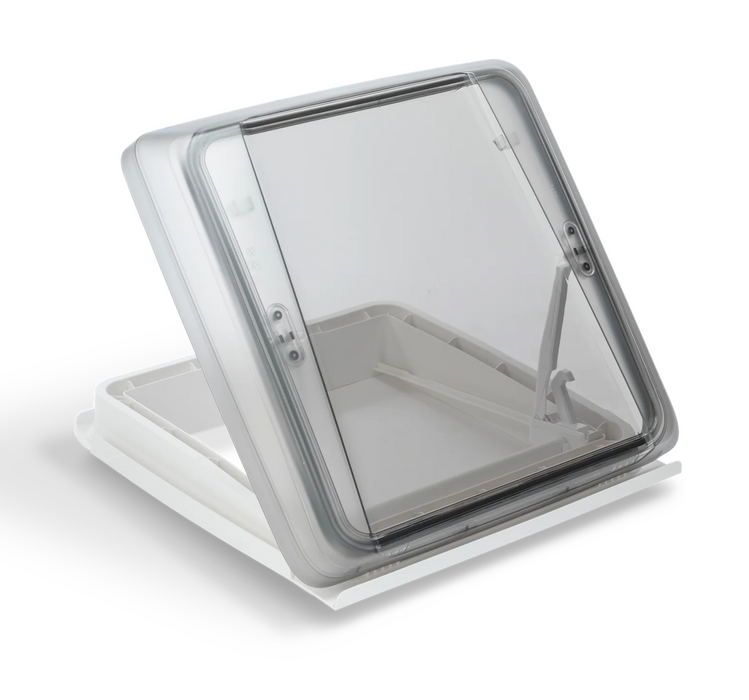

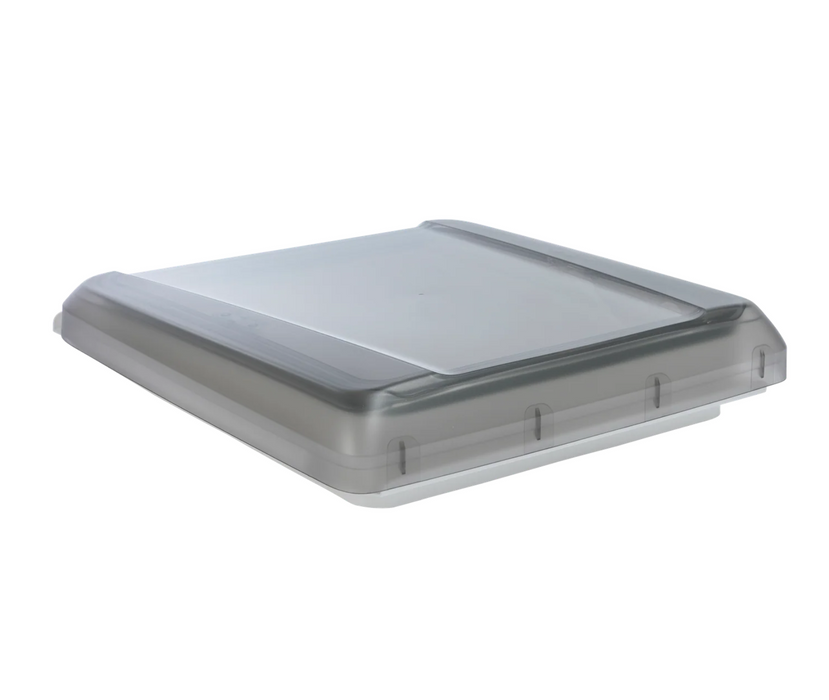

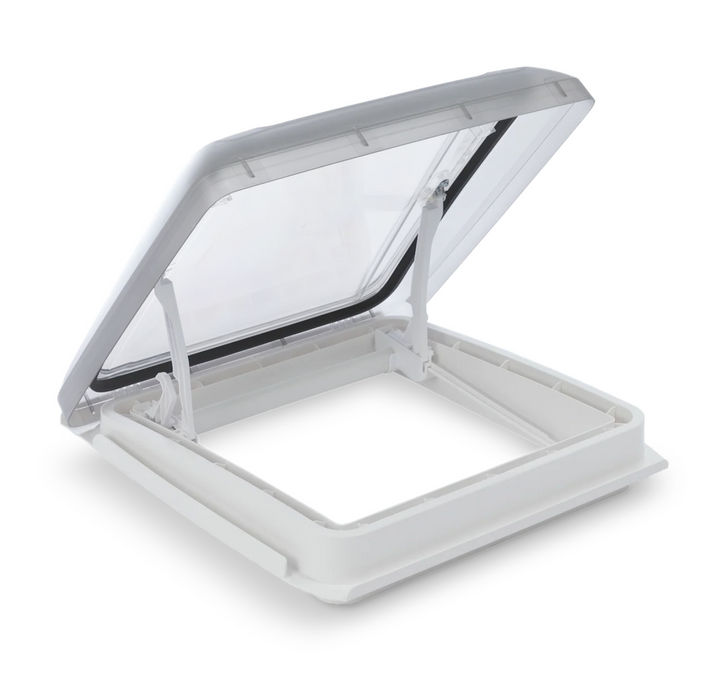

The MPK VisionStar M Roof Hatch is a premium panoramic skylight designed for camper vans, RVs, and overland builds that demand quiet performance, natural light, and reliable insulation.

Manufactured in Germany, this roof hatch combines low-profile aerodynamics, double-glazed poly-carbonate construction, and smooth ventilation control into one refined solution. At just 105mm above the roofline, it reduces wind noise while delivering excellent airflow and soft, diffused interior lighting.

Built for real-world use, the VisionStar L is trusted across European motorhomes and now available through Expedition Upfitter.

The VisionStar M roof vent for the cutout dimensions 400x400 mm is also available with dimmable, energy-saving LED's in the inner frame. (Optional Upgrade)

Details:

• Suitable for caravans, motor homes and touring vehicles
• Suitable for roof thicknesses from 25-60 mm
• Smoked Poly-carbonate roof hood with double glazing
• Without permanent ventilation
• Inner frame with double pleated blind

• Diffusing double pane for uniform light distribution
• Only 105 mm flat above the roof
• Minimal driving noise and draughts
• Double-walled canopy and frame made of poly carbonate for optimum insulation
• High UV protection thanks to tinted material
• Convenient one-handed operation
• Infinitely adjustable up to 55 degrees
• Impact Resistant
• Made in Germany

Technical data:

• Cut-out dimensions: 400 × 400 mm (15.75 × 15.75 in)
• Corner radius: 28 mm (1.10 in)
• Roof thickness range: 25 – 60 mm (0.98 – 2.36 in)
• Hood dimensions: 490 × 470 mm (19.29 × 18.50 in)
• Height above roof: 80 mm (3.15 in)
• Frame dimensions: 565 × 530 × 35 mm (22.24 × 20.87 × 1.38 in)
• LED version: 872 x 650 x 37 mm (34.33 x 25.59 x 1.46 in)
• Recommended maximum speed for transverse installation: 160 km/h (99 mph)
• Recommended maximum speed for longitudinal installation: 130 km/h (81 mph)
• Template for cut out: Included


Upgrade your order by adding the LED option for your roof hatch!

LED light source data (only for LED version):

• Light color ~ 3000K
• Energy efficiency class F
• Nom. Useful luminous flux 2 x 390 lm
• Mains voltage 12 - 14V DC
• Consumption 2 x 4.2 kW/h / 1000h
• Nominal service life 10,000 h
• Number of switching cycles 50,000
• Start-up time until 60% of full brightness is reached < 1 sec.
• Nominal Half-value angle (not suitable for accent lighting) 60°

Scope of delivery:

• 1x roof canopy with top frame and pleated frame
• 1x fastening parts set (14 side clips, 4 plastic screws)
• Please note: To help us conserve resources, we supply our roof vents without screws – the correct length depends on your roof thickness. This way, we avoid waste and you can choose the right screws. You'll find helpful tips in our installation instructions.
• Full line of replacement parts are available through Expedition Upfitter

For assembly you will also need (not included):

• Permanently elastic sealant, e.g.  Korapop 225
• 8 x 3.5 mm pan head sheet metal screws (DIN ISO 7049). The screw length depends on the roof thickness. (3.5 mm diameter ≈ 0.14 in ≈ #6 screw size equivalent)




  Roof thickness and required screw length

  Roof thickness	Screw length
  25–38 mm (0.98–1.50 in)	25 mm (0.98 in)
  38–51 mm (1.50–2.01 in)	38 mm (1.50 in)
  50–60 mm (1.97–2.36 in)	50 mm (1.97 in)



  Download the installation guide.
